DUMP BODY & HOIST

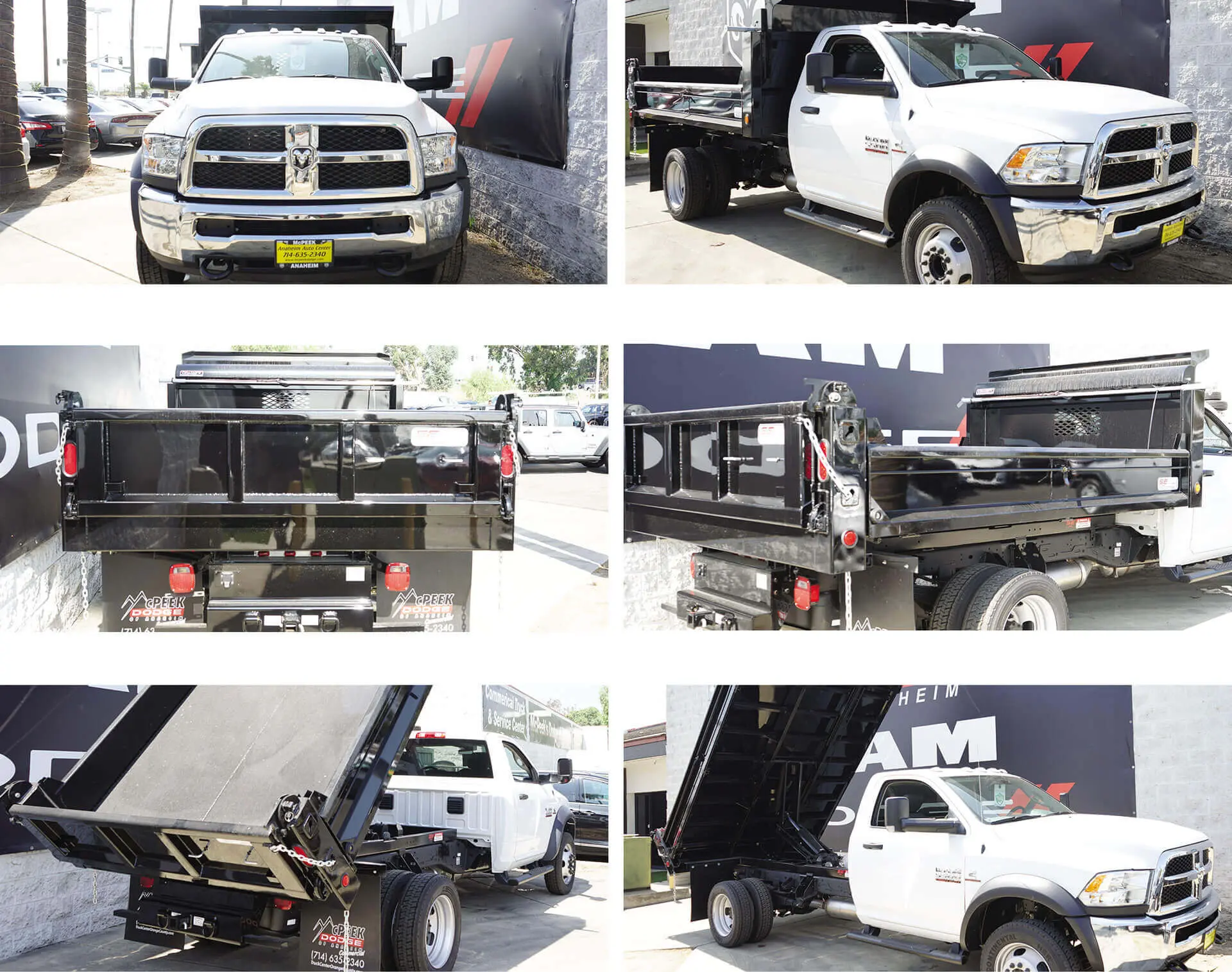

AVAILABLE IN RAM 55003-4 CUBIC YARD DUMP BODY & HOIST

DBS 11-6 Dump body with solid sides
DBF 11-6 Dump body with fold down sides (option)
Recommended: 14,000 – 19,00 GVW Approx. 2,250 lbs.
Installed on customer supplied 84″ CA Chassis

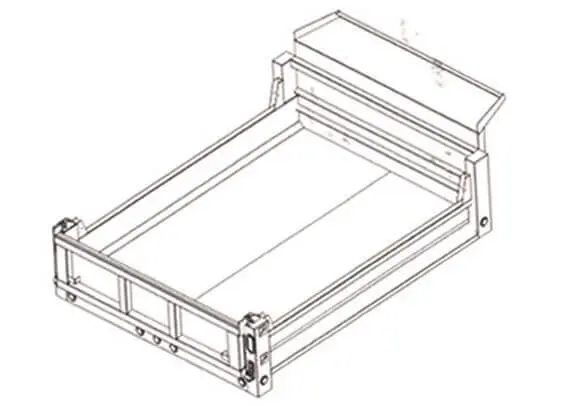

BODY SPECIFICATIONS

DBS 11-6 Dump body with solid sides

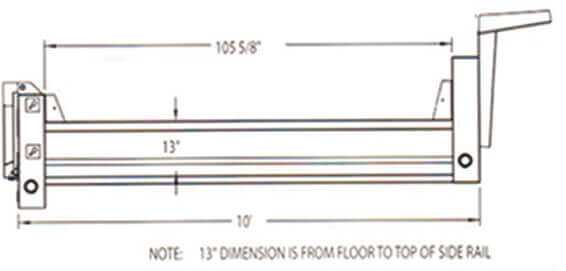

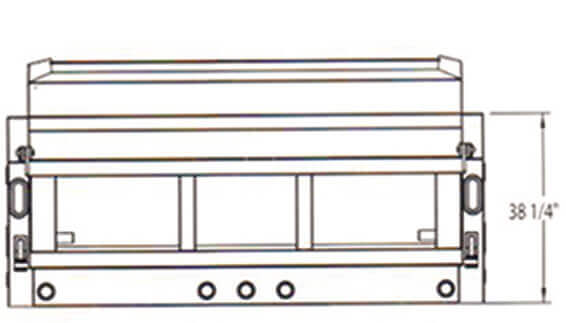

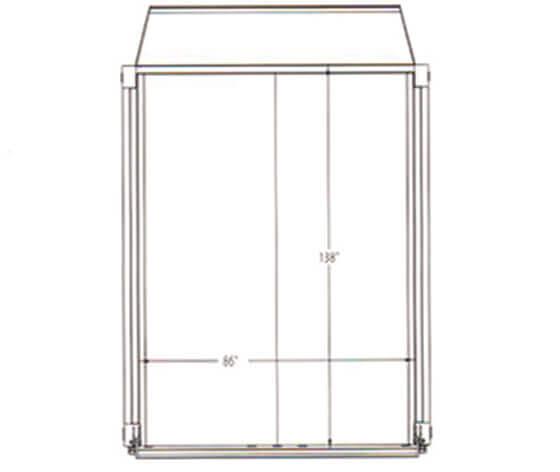

11’6″ Long x 86″ Wide Inside x 14″ Sides x 20″ Tail Gate x 32″ Bulkhead
10 Gauge High-Tensile Throughout
3″ Cross Bars on 15″ Centers x 5″ Channel Longs
Punched window
1/4 Size Cab Shield, Deluxe Light Package with Oval Stop & Turn Lights
Body Pained Black or White
Mud flaps and brackets

HOST

Scelzi CS61 5T-11
Class 40
Power up and power down
LED raised up warning light
Rated at 12.6 ton capacity
12″ Overhang

AVAILABLE OPTIONS

Fold Down Sides (DBF 11-6)
6″ x 3/16″ spreader apron
Center ditch gate, sliding type
3/16″ floor in lieu of 10 gauge
Semi Automatic pull tarp, black mesh (part # 36126)
LED lighting
